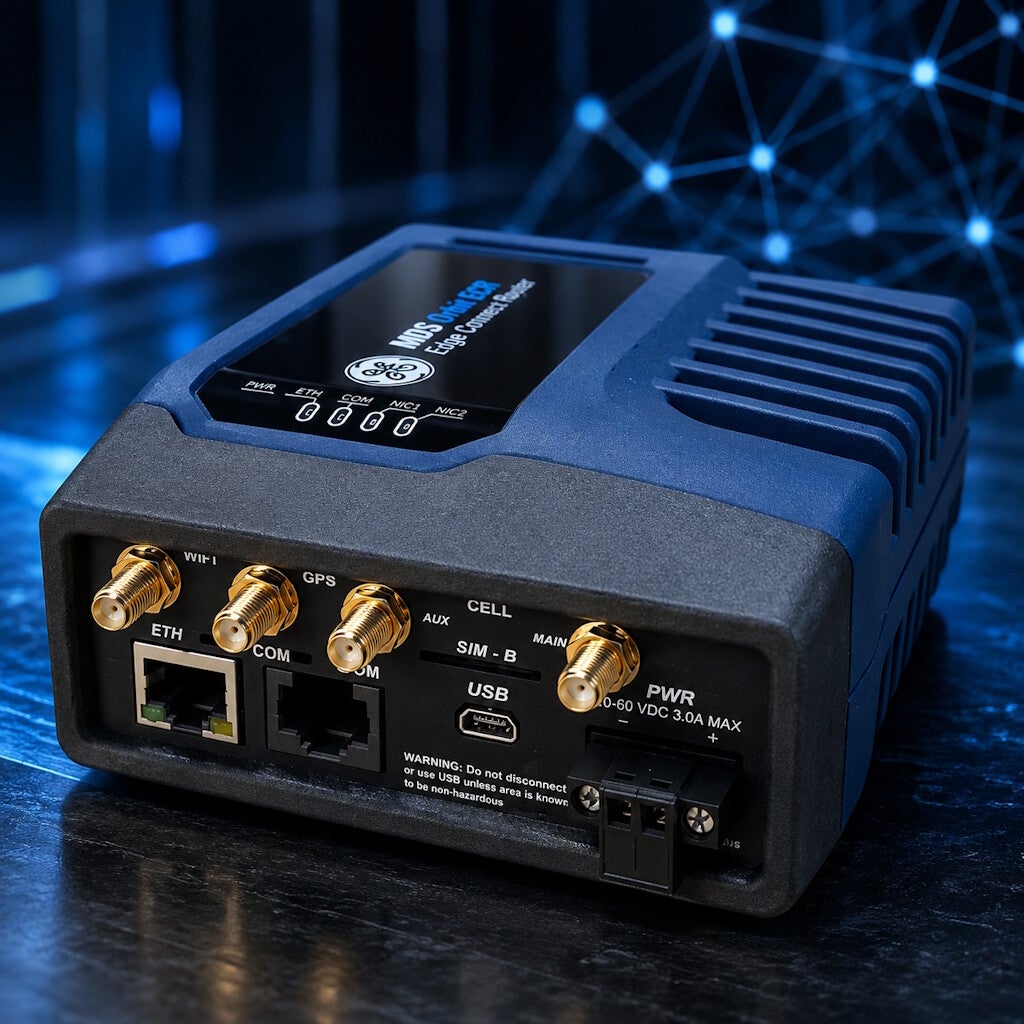

GE Edge Connect Router
The GE MDS ECR (Edge Connect Router) is a rugged, industrial-grade communication platform designed to support the growing demands of IIoT and utility telemetry. Built for edge networking, the ECR offers secure, high-speed connectivity across multiple network interfaces—including cellular, Ethernet, and serial—enabling seamless data acquisition and transmission in both centralized and distributed system architectures. It’s ideal for critical infrastructure applications where reliability, flexibility, and security are paramount.
With built-in routing, VPN, firewall, and LTE failover capabilities, the ECR provides powerful functionality in a compact form. This device is purpose-built for industrial environments and supports deployment in harsh field conditions—offering wide temperature tolerances, surge protection, and rugged enclosures. Whether you're extending communication to a remote lift station or integrating field assets into a SCADA system, the ECR ensures robust performance and uninterrupted data flow.
Bridging Legacy Systems with Modern Connectivity
The ECR is designed to support modern network architectures while maintaining compatibility with legacy systems, making it a key solution for utilities managing infrastructure transitions. Its support for both serial and IP protocols allows operators to bridge old and new technologies without costly system overhauls. Combined with remote management features, the ECR simplifies network maintenance and enhances visibility into system health and device status.
Backed by GE’s industrial networking pedigree and supported by BCI Technologies’ 25+ years of wireless integration expertise, the ECR is more than just a router—it’s a gateway to smarter, more connected infrastructure.
As part of our wireless telemetry product line, the ECR empowers utilities to operate efficiently, scale intelligently, and maintain secure communications in even the most challenging environments.
Technical Specifications
| Communication Technologies | Cellular, unlicensed radio (900MHz ISM), licensed narrowband, and Wi-Fi. |
| Ports | 1 Ethernet port, 1 Serial port, optional USB port for configuration and status monitoring. |
| Power | 10-60VDC |
| Mounting | Standard 3-hole bracket for h orizontal mounting or DIN rail for veritcal mounting |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Security | IPSec VPNs, stateful firewalling, MAC filtering, secure boot, and tamper detection. |
| Data Rates | Up to 240 Kbps in a 50 kHz channel (licensed radio) or up to 120 Kbps in a 25 kHz channel. |
| Range | Up to 30 miles line of sight for 900MHz unlicensed radio. |
| Antenna Ports | TNC (900MHz), RP-SMA (WiFi), SMA (Cellular) |
| Modulation | QAM modulation (licensed radio) |
| Radio Management | PulseNET Radio Management Software |
| Compliance | FCC/IC/UL/CSA |
| Terminal Server | Flexible Terminal Server for serial/SCADA protocols. |
| Network Features | IP routing, port forwarding, and network address translation. |
| Media Access Control (MAC) | Patented MAC for optimal throughput and collision avoidance. |
| Wi-Fi | Optional Wi-Fi (2.4/5 GHz) with 802.11 b/g/n standards. |
| Scalable Data Througput | Data throughput rates of 125 Kbps, 250 Kbps, 500 Kbps, 1 Mbps, and 1.25 Mbps. |
| Network Topologies | Supports point-to-point, point-to-multipoint, and store-and-forward network topologies. |
